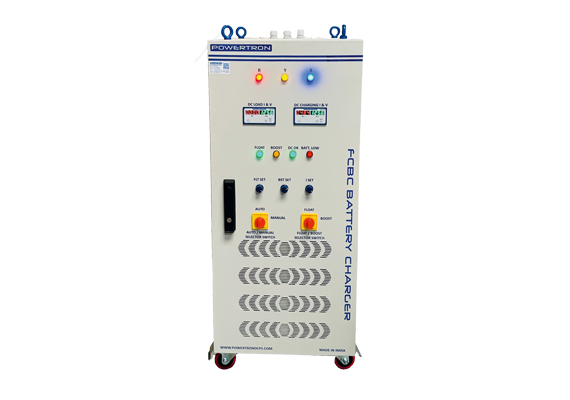

SMPS Controlled FCBC Battery Charger Manufacturers & Exporters
AVAILABLE VARIANTS
| Battery Voltage | Float Voltage | Boost Current | Charging Current |
|---|---|---|---|
| 12VDC | 13.5VDC | 14.4VDC | 1AMP TO 1000AMP & Customized |
| 24VDC | 27VDC | 28.8VDC | |
| 48VDC | 54VDC | 57.6VDC | |
| 72VDC | 81VDCC | 86.4VDC | |
| 110VDC | 123.75VDC | 132VDC | |
| 220VDC | 247.5VDC | 264VDC | |
| WE PROVIDE CUSTOMIZED SOLUTIONS | |||
| Parameter | Specification |
|---|---|
| Product | SMPS Controlled FCBC Battery Charger |
| Input | AC Supply |
| Output | Regulated DC |
| Charging Mode | Float / Boost |
| Output Voltage | Application dependent |
| Charging Current | Application dependent |
| Battery Type | Lead-Acid / VRLA / Ni-Cd as required |
| Control | SMPS / Microprocessor-based as required |
| Protection | Overload / Short Circuit / Over-Voltage / Thermal |
| Monitoring | Digital / Alarm options |
| Mounting | Panel / Rack / Floor |
| Operation | Continuous Duty |
| Customization | Available |
How Does FCBC Battery Charger Work?
The charger operates in two primary modes:
Float Mode: Maintains the battery at the required standby voltage while continuously supporting the battery system.
Boost Mode: Provides controlled higher charging voltage/current to restore the battery after discharge, according to the battery manufacturer's requirements.
Why Choose Powertron DCPS?
Powertron DCPS provides SMPS Controlled FCBC Battery Charger solutions with efficient SMPS technology, regulated output, automatic float/boost charging, protection features, monitoring options, and configurations suitable for industrial and critical power applications.
FAQ
FCBC means Float Cum Boost Charger, which provides both float and boost charging for industrial battery systems.
SMPS technology offers high efficiency, compact design, regulated output, and reduced heat generation.
Depending on the configuration, FCBC chargers can be designed for Lead-Acid, VRLA, Ni-Cd, and other compatible batteries.
They are widely used in substations, power plants, telecom systems, UPS, railway, and industrial DC power systems.
Yes. Input, output voltage, charging current, battery type, mounting, protection, monitoring, and communication features can be configured according to application requirements.
Need a SMPS controlled FCBC battery charger ?
Get SMPS controlled FCBC battery chargers with float and boost charging, regulated DC output, high efficiency and protection for critical power systems. Enquire now!
