Programmable DC Power Supply Manufacturers & Exporters

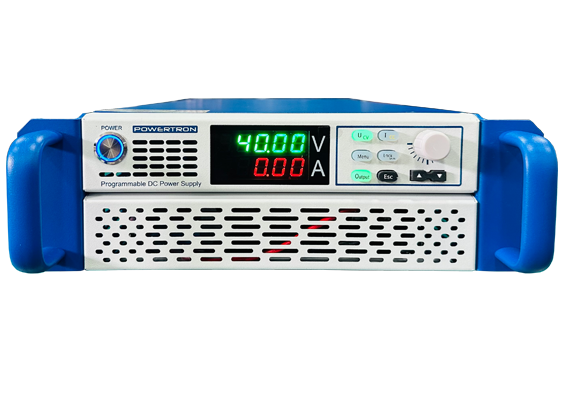

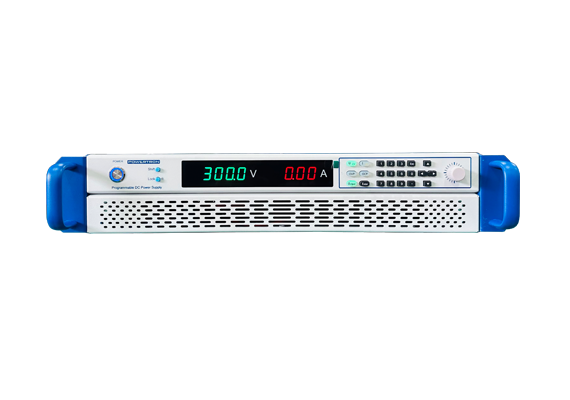

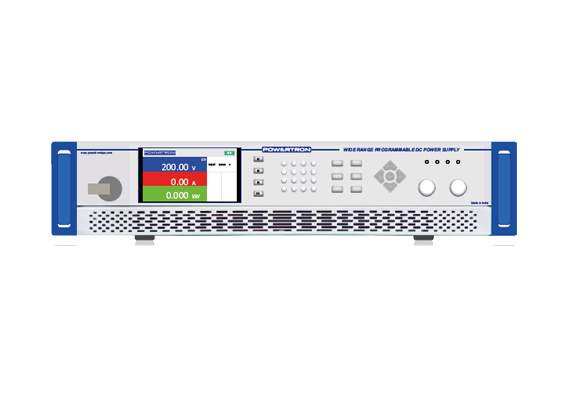

Name: Programmable DC Power Supply
Brand: Powertron

A Programmable DC Power Supply is an advanced power source designed to provide precise and adjustable DC voltage and current for industrial, testing, laboratory, and electronic applications. It allows users to control output parameters according to specific operating or testing requirements.

Powertron DCPS offers reliable programmable DC power supply solutions with regulated output, digital control, monitoring, protection features, and customizable configurations for demanding applications.

Programmable DC Power Supply

Request A Quote

Key Features:

Programmable DC voltage and current
Constant Voltage (CV) and Constant Current (CC) modes
Digital display and control
Stable and regulated DC output
High efficiency
Low output ripple
Remote control options
Over-voltage protection
Over-current protection
Short-circuit protection
Over-temperature protection
Memory and preset functions as required
Compact and robust construction
Continuous-duty operation

Automotive

Renewable Energy

Data Centres

Automation

Battery Manufacturing

Inverter & Ups Testing

DC Motor Testing

Semiconductor Manufacturing

Available Variants for 3KW Series
Model no.	Rated Ouput		Voltage Ripple Vrms (20MHz)	Programming Resolution		Display Resolution
Model no.	V	A	Voltage Ripple Vrms (20MHz)	V	A	V	A
PIPL-3KW-30-200-PDP	0-30V	200A	<0.02%	0.05%	0.05%	0.01V	0.1A
PIPL-3KW-60-100-PDP	0-60V	100A	<0.02%	0.05%	0.05%	0.01V	0.1A
PIPL-3KW-100-60-PDP	0-100V	60A	<0.02%	0.05%	0.05%	0.1V	0.01A
PIPL-3KW-150-40-PDP	0-150V	40A	<0.02%	0.05%	0.05%	0.1V	0.01A
PIPL-3KW-300-20-PDP	0-300V	20A	<0.02%	0.05%	0.05%	0.1V	0.01A
PIPL-3KW-600-15-PDP	0-600V	0-15A	<0.02%	0.05%	0.05%	0.1V	0.01A
PIPL-3KW-800-08-PDP	0-800V	0-7.5A	<0.02%	0.05%	0.05%	0.1V	0.01A
PIPL-3KW-1K-06-PDP	0-1000V	0-6A	<0.02%	0.05%	0.05%	0.1V	0.01A

Available Variants for 6KW Series
Model no.	Rated Ouput		Voltage Ripple Vrms (20MHz)	Programming Resolution		Display Resolution
Model no.	V	A	Voltage Ripple Vrms (20MHz)	V	A	V	A
PIPL-6KW-30-200-PDP	0-30V	200A	<0.02%	0.05%	0.05%	0.01V	0.1A
PIPL-6KW-60-100-PDP	0-60V	100A	<0.02%	0.05%	0.05%	0.01V	0.1A
PIPL-6KW-100-60-PDP	0-100V	60A	<0.02%	0.05%	0.05%	0.1V	0.01A
PIPL-6KW-150-40-PDP	0-150V	40A	<0.02%	0.05%	0.05%	0.1V	0.01A
PIPL-6KW-300-20-PDP	0-300V	20A	<0.02%	0.05%	0.05%	0.1V	0.01A
PIPL-6KW-600-15-PDP	0-600V	0-15A	<0.02%	0.05%	0.05%	0.1V	0.01A
PIPL-6KW-800-08-PDP	0-800V	0-7.5A	<0.02%	0.05%	0.05%	0.1V	0.01A
PIPL-6KW-1K-06-PDP	0-1000V	0-6A	<0.02%	0.05%	0.05%	0.1V	0.01A

Available Variants for 1K5W Series
Model no.	Rated Ouput			Voltage Ripple Vrms (20MHz)	Programming Resolution		Display Resolution
Model no.	V	A	OVP	Voltage Ripple Vrms (20MHz)	V	A	V	A
PIPL-1K5W-30-50-PDP	0-30V	50A	0-31.5V	<0.5%+100mV	0.01V	0.1V	0.01V	0.1A
PIPL-1K5W-60-25PDP	0-60V	25A	0-52.5V	<0.5%+100mV	0.01V	0.1V	0.01V	0.1A
PIPL-1K5W-100-15-PDP	0-100V	15A	0-63V	<0.5%+100mV	0.01V	0.1V	0.01V	0.01A
PIPL-1K5W-150-15-PDP	0-150V	15A	0-105V	<0.5%+100mV	0.01V	0.1V	0.1V	0.01A
PIPL-1K5W-300-5-PDP	0-300V	5A	0-157.5V	<0.5%+100mV	0.01V	0.1V	0.1V	0.01A

Parameter	Specification
Product	Programmable DC Power Supply
Input	AC / DC as required
Output	Regulated DC
Output Voltage	Application dependent
Output Current	Application dependent
Power Rating	Application dependent
Control Mode	CV / CC
Programming	Digital / Remote
Display	Digital
Output Ripple	Low ripple design
Protection	OVP / OCP / Short Circuit / Thermal
Cooling	Natural / Forced Air
Mounting	Rack / Panel / Floor
Operation	Continuous Duty
Customization	Available

Benefits

Precise voltage and current control
Easy digital programming
Stable DC output
Suitable for automated testing
Repeatable test conditions
Low output ripple
Multiple protection functions
Remote monitoring and control options
Reduced manual intervention
Flexible application-specific configuration

Applications

Programmable DC Power Supplies are widely used in:

Electronics Testing
Battery Testing
R&D Laboratories
Industrial Automation
Power Electronics Testing
Semiconductor Testing
Product Development
Quality Control
Telecom Equipment Testing
Automotive Testing
EV Testing
LED Testing
Manufacturing Test Systems
Educational Laboratories

Programmable DC Power Supply for Testing

A programmable DC power supply for testing allows engineers to set specific voltage and current values for product testing. It can help create repeatable test conditions during product development, validation, and quality control.

It is suitable for testing:

Electronic circuits
Power supplies
Controllers
Batteries
Inverters
Motors and drives
Automotive electronics
Industrial equipment

How Does a Programmable DC Power Supply Work?

The user sets the required voltage and current through the digital control interface. The internal control system continuously regulates the output to maintain the programmed values.

Depending on the configuration, the unit can also support remote programming, preset values, data monitoring, and automated test sequences.

It can be used for:

EV battery testing
DC bus simulation
Powertrain testing
Battery management system testing
Charger testing
Regenerative energy testing

How Does a Programmable DC Power Supply Work?

The user sets the required voltage and current through the digital control interface. The internal control system continuously regulates the output to maintain the programmed values.

Depending on the configuration, the unit can also support remote programming, preset values, data monitoring, and automated test sequences.

Why Choose Powertron DCPS?

Powertron DCPS provides programmable DC power supply solutions designed for precise and reliable power delivery. Systems can be customized according to required output voltage, current, power rating, control method, protection, communication, cooling, and mounting requirements.

FAQ

What is a Programmable DC Power Supply? +

It is a DC power supply that allows users to digitally set and control output voltage and current according to application requirements.

What is CV and CC mode? +

CV (Constant Voltage) maintains the set output voltage, while CC (Constant Current) regulates the output current at the selected level.

Where are programmable DC power supplies used? +

They are commonly used in electronics testing, battery testing, R&D, automotive testing, industrial automation, telecom, and manufacturing.

Can a programmable DC power supply be remotely controlled? +

Yes. Depending on the configuration, remote control and communication options can be provided for automated testing and monitoring.

Can Powertron DCPS provide customized programmable DC power supplies? +

Yes. Voltage, current, power rating, programming interface, protection, communication, cooling, and mounting can be configured according to the application requirements.
