Bi-Directional DC Power Supply Manufacturers & Exporters

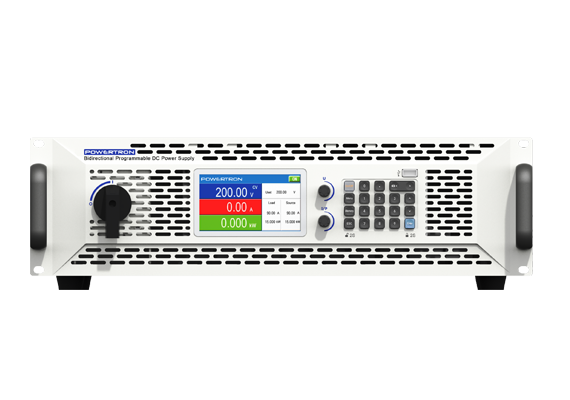

Name: Bi-Directional DC Power Supply
Brand: Powertron

A Bi-Directional DC Power Supply is an advanced power conversion system capable of both sourcing power to a DC load and absorbing power from a DC source. Unlike a conventional DC power supply, it can operate in both power-flow directions, making it suitable for modern energy storage, battery testing, electric vehicle, and power electronics applications.

Powertron DCPS provides reliable bi-directional DC power supply solutionsfor applications requiring controlled DC power, regenerative operation, battery charging and discharging, and energy flow management.

Bi-Directional DC Power Supply

Request A Quote

Key Features :

Bi-directional power flow
DC source and sink operation
Regulated DC voltage and current
Constant Voltage (CV) and Constant Current (CC) modes
Programmable operation options
Battery charging and discharging
Regenerative energy operation
High efficiency
Low output ripple
Digital monitoring and control
Over-voltage protection
Over-current protection
Short-circuit protection
Over-temperature protection
Industrial-grade construction

Electric Vehicle Motor Testing

EV Powertrain Testing

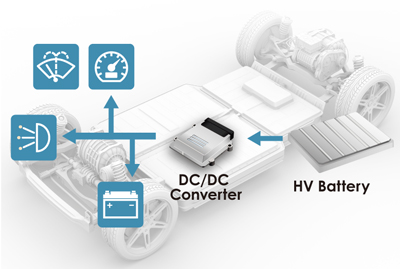

Electric Vehicle Dcdc Test

Solar

Hybrid Vehicle Generator Testing

Complete Vehicle Testing

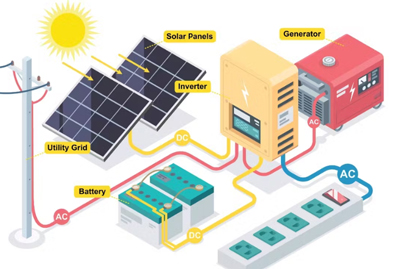

Grid Tie Inverter Testing

Model no.	V	A	Power	Size
PIPL-005-100-170A-BDP	100V	170A	5kW	3U
PIPL-010-100-340A-BDP		340A	10kW	3U
PIPL-015-100-510A-BDP		510A	15kW	3U
PIPL-007-330-75A-BDP	330V	75A	7kW	3U
PIPL-014-330-150A-BDP		150A	14kW	3U
PIPL-021-330-225A-BDP		225A	21kW	3U
PIPL-005-500-40A-BDP	500V	40A	5kW	3U
PIPL-010-500-80A-BDPP		80A	10kW	3U
PIPL-015-500-120A-BDP		120A	15kW	3U
PIPL-007-500-40A-BDP		40A	7kW	3U
PIPL-014-500-80A-BDP		80A	14kW	3U
PIPL-021-500-120A-BDP		120A	21kW	3U
PIPL-007-750-25A-BDP	750V	25A	7kW	3U
PIPL-014-750-50A-BDP		50A	14kW	3U
PIPL-021-750-75A-BDP		75A	21kW	3U
PIPL-014-1000-40A-BDP	1000V	40A	10kW	3U
PIPL-021-1000-75A-BDP		40A	14kW	3U
PIPL-021-1000-75A-BDP		75A	21kW	3U
PIPL-015-1500-40A-BDP	1500v	40A	15kW	3U
PIPL-021-1500-40A-BDP		40A	21kW	3U
PIPL-030-1500-80A-BDP		80A	30kW	3U

Parameter	Specification
Product	Bi-Directional DC Power Supply
Input / Output	DC
Power Flow	Bidirectional
DC Voltage	Application dependent
DC Current	Application dependent
Power Rating	Application dependent
Operating Modes	Source / Sink
Control Modes	CV / CC
Efficiency	High-efficiency design
Output Ripple	Low ripple
Protection	OVP / OCP / Short Circuit / Thermal
Control	Digital / Programmable options
Cooling	Natural / Forced Air
Mounting	Rack / Panel / Floor
Operation	Continuous Duty
Customization	Available

How Does a Bi-Directional DC Power Supply Work?

A bi-directional DC power supply uses advanced power electronics to control the direction of electrical energy.

Power Source Mode

The system supplies controlled DC voltage and current to the connected load, similar to a conventional DC power supply.

Power Sink Mode

The system absorbs DC energy from the connected source and can return or dissipate that energy depending on the system architecture.

This capability is particularly useful for battery charge-discharge testing, regenerative testing, energy storage systems, and power electronics development.

Benefits

Supports two-way energy flow
Enables battery charge and discharge testing
Reduces the need for separate charging and discharging equipment
Enables regenerative energy operation
High energy efficiency
Precise voltage and current control
Programmable testing capabilities
Low output ripple
Multiple protection functions
Suitable for automated test systems
Flexible solution for energy storage applications

Applications

Bi-Directional DC Power Supplies are widely used in:

Battery Testing
Battery Energy Storage Systems
Electric Vehicle Testing
EV Battery Testing
Automotive Testing
Fuel Cell Testing
Power Electronics Testing
DC Bus Testing
Renewable Energy Systems
Solar Energy Systems
Energy Storage Systems
Research & Development
Automated Test Equipment
Industrial Power Systems

Bi-Directional DC Power Supply for Battery Testing

Battery testing requires controlled charging and discharging cycles. A bi-directional DC power supply for battery testing can charge the battery during one operating cycle and absorb energy during discharge.

Battery capacity testing
Charge-discharge cycle testing
Battery performance evaluation
Battery ageing studies
Battery validation
Energy efficiency testing

Bi-Directional DC Power Supply for EV Testing

Electric vehicle batteries and powertrain components require extensive testing under different operating conditions.

A bi-directional DC power supply for EV testing can simulate controlled DC bus conditions and support battery charging, discharging, and regenerative energy testing.

It can be used for:

EV battery testing
DC bus simulation
Powertrain testing
Battery management system testing
Charger testing
Regenerative energy testing

Bi-Directional DC Power Supply for Energy Storage

Energy storage systems need equipment capable of managing energy in both directions. A bi-directional DC power supply for energy storage applications can supply energy to the storage system during charging and absorb energy during discharge testing.

Why Choose Powertron DCPS?

Powertron DCPS provides bi-directional DC power supply solutions designed for demanding testing, energy storage, automotive, and industrial applications.

Key advantages include:

Advanced power conversion technology
Controlled two-way power flow
CV/CC operation
High-efficiency performance
Programmable control options
Regenerative operation
Multiple protection functions
Industrial-grade construction
Application-specific customization
Suitable for automated testing systems

FAQ

What is a Bi-Directional DC Power Supply? +

A bi-directional DC power supply can both deliver DC power to a connected load and absorb DC power from a connected source, enabling two-way energy flow.

What is the difference between a conventional and bi-directional DC power supply? +

A conventional DC power supply generally supplies power in one direction, while a bi-directional DC power supply can operate as both a power source and a power sink.

Can it be used for battery charging and discharging? +

Yes. It can support controlled battery charging and discharging, making it suitable for battery testing and energy storage applications.

Where are bi-directional DC power supplies used? +

They are commonly used in EV testing, battery testing, energy storage, fuel cell testing, renewable energy, power electronics, and R&D laboratories.

Can Powertron DCPS provide customized bi-directional DC power supplies? +

Yes. Voltage, current, power rating, control modes, communication, cooling, mounting, protection, and other parameters can be configured according to application requirements.
