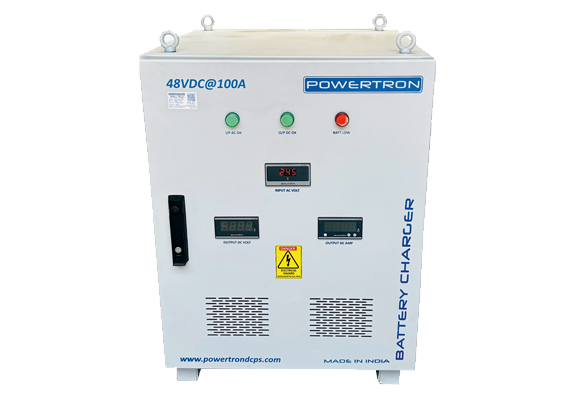

IGBT Controlled FCBC Battery Charger Manufacturers & Exporters
AVAILABLE VARIANTS
| Battery Voltage | Float Voltage | Boost Current | Charging Current |
|---|---|---|---|
| 12VDC | 13.5VDC | 14.4VDC | Customizable Range |
| 24VDC | 27VDC | 28.8VDC | |
| 48VDC | 54VDC | 57.6VDC | |
| 110VDC | 123.75VDC | 132VDC | |
| 220VDC | 247.5VDC | 264VDC | |
| WE PROVIDE CUSTOMIZED SOLUTIONS | |||
| Parameter | Specification |
|---|---|
| Product | IGBT Controlled FCBC Battery Charger |
| Input | AC Supply |
| Output | Regulated DC |
| Charging Mode | Float / Boost |
| Control Technology | IGBT Controlled |
| Output Voltage | Application dependent |
| Charging Current | Application dependent |
| Battery Type | Lead-Acid / VRLA / Ni-Cd as required |
| Output Ripple | Low ripple design |
| Protection | Overload / Short Circuit / Over-Voltage / Thermal |
| Monitoring | Digital / Alarm options |
| Mounting | Panel / Rack / Floor |
| Operation | Continuous Duty |
| Customization | Available |
Float & Boost Charging
Float Charging
In float mode, the charger maintains the battery at the required standby voltage and keeps it ready for backup operation.
Boost Charging
In boost mode, the charger provides controlled higher charging power to restore the battery after discharge, according to the battery manufacturer's recommended charging parameters.
Why Choose Powertron DCPS?
Powertron DCPS provides IGBT Controlled FCBC Battery Charger solutions featuring efficient IGBT technology, regulated DC output, low ripple, automatic float and boost charging, protection functions, monitoring options, and application-specific configurations.
FAQ
It is a Float Cum Boost Charger that uses IGBT-based power conversion technology to provide controlled and regulated DC charging for industrial battery systems.
IGBT technology can provide high efficiency, fast control response, precise regulation, and reduced power losses, making it suitable for modern industrial battery charging applications.
FCBC means Float Cum Boost Charging, where float mode maintains the battery during standby operation and boost mode helps restore battery charge after discharge.
They are commonly used in substations, power plants, telecom systems, UPS, railway, utility, and industrial DC power systems.
Yes. Input/output voltage, charging current, battery type, mounting, protection, monitoring, alarms, and other features can be configured according to application requirements.
Need a IGBT FCBC Battery Charger ?
Explore reliable IGBT FCBC battery chargers with efficient power conversion, automatic charging, digital monitoring and robust protection. Enquire today.
