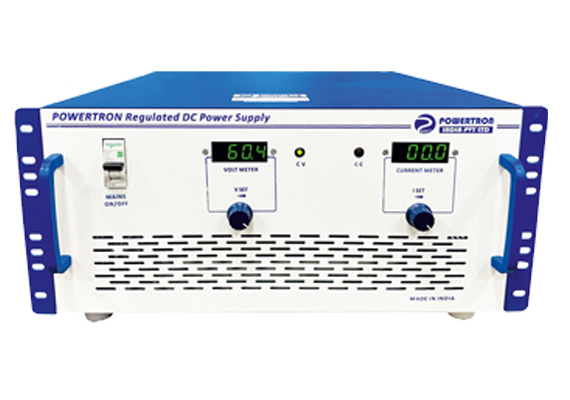

SMPS Based DC Power Supply Manufacturers & Exporters
| MODEL | INPUT VOLTAGE | OUTPUT VOLTAGE | OUTPUT CURRENT | POWER |
| PIPL-1510SDP | 180V TO 270VAC (230VAC - 1Phase) |
0-15V | 0-10A | 150W |
| PIPL-3005SDP | 0-30V | 0-5A | ||
| PIPL-6003SDP | 0-60V | 0-2.5A | ||
| PIPL-7502SDP | 0-75V | 0-2A | ||
| PIPL-10002SDP | 0-100V | 0-1.5A | ||
| PIPL-3020SDP | 180V TO 270VAC (230VAC - 1Phase) |
0-30V | 0-20A | 600W |
| PIPL-6010SDP | 0-60V | 0-10A | ||
| PIPL-10006SDP | 0-100V | 0-6A | ||
| PIPL-15004SDP | 0-150V | 0-4A | ||
| PIPL-30002SDP | 0-300V | 0-2A | ||
| PIPL-30100SDP | 180V TO 270VAC (230VAC - 1Phase) |
0-30V | 0-100A | 3000W |
| PIPL-6050SDP | 0-60V | 0-50A | ||
| PIPL-10030SDP | 0-100V | 0-30A | ||
| PIPL-15020SDP | 0-150V | 0-20A | ||
| PIPL-30010SDP | 0-300V | 0-10A | ||
| PIPL-60005SDP | 0-600V | 0-5A | ||
| PIPL-30335SDP | 360V TO 470VAC (415VAC - 3Phase - 4 Wire) |
0-30V | 0-335A | 10000W |
| PIPL-60166SDP | 0-60V | 0-166A | ||
| PIPL-100100SDP | 0-100V | 0-100A | ||
| PIPL-15066SDP | 0-150V | 0-66A | ||
| PIPL-30033SDP | 0-300V | 0-33A | ||
| PIPL-60016SDP | 0-600V | 0-16A | ||
| PIPL-1520SDP | 180V TO 270VAC (230VAC - 1Phase) |
0-15V | 0-20A | 300W |
| PIPL-3010SDP | 0-30V | 0-10A | ||
| PIPL-6005SDP | 0-60V | 0-5A | ||
| PIPL-7504SDP | 0-75V | 0-4A | ||
| PIPL-10003SDP | 0-100V | 0-3A | ||
| PIPL-3050SDP | 180V TO 270VAC (230VAC - 1Phase) |
0-30V | 0-50A | 1500W |
| PIPL-6025SDP | 0-60V | 0-25A | ||
| PIPL-10015SDP | 0-100V | 0-15A | ||
| PIPL-15010SDP | 0-150V | 0-10A | ||
| PIPL-30005SDP | 0-300V | 0-5A | ||
| PIPL-30200SDP | 180V TO 270VAC (230VAC - 1Phase) |
0-30V | 0-200A | 6000W |
| PIPL-60100SDP | 0-60V | 0-100A | ||
| PIPL-10060SDP | 0-100V | 0-60A | ||
| PIPL-15040SDP | 0-150V | 0-40A | ||
| PIPL-30020SDP | 0-300V | 0-20A | ||
| PIPL-600100SDP | 0-600V | 0-10A | ||
| PIPL-30500SDP | 360V TO 470VAC (415VAC - 3Phase - 4 Wire) |
0-30V | 0-500A | 15000W |
| PIPL-60250SDP | 0-60V | 0-250A | ||
| PIPL-100150SDP | 0-100V | 0-150A | ||
| PIPL-150100SDP | 0-150V | 0-100A | ||
| PIPL-30050SDP | 0-300V | 0-50A | ||
| PIPL-60025SDP | 0-600V | 0-25A | ||
| Parameter | Specification |
|---|---|
| Product | SMPS Based DC Power Supply |
| Input | AC / DC as required |
| Output | Regulated DC |
| Output Voltage | Application dependent |
| Output Current | Application dependent |
| Power Rating | Application dependent |
| Control Mode | CV / CC as required |
| Efficiency | High-efficiency design |
| Output Ripple | Low ripple |
| Protection | OVP / OCP / Short Circuit / Thermal |
| Cooling | Natural / Forced Air |
| Monitoring | Digital / Remote options |
| Mounting | Panel / Rack / Floor |
| Operation | Continuous Duty |
| Customization | Available |
SMPS Based DC Power Supply for Industrial Applications
An industrial SMPS power supply provides regulated DC power to PLCs, control systems, sensors, instrumentation, communication equipment, relays, and other industrial devices.
Its high efficiency and compact design make it suitable for continuous-duty industrial applications.
SMPS vs Linear DC Power Supply
| Feature | SMPS DC Power Supply | Linear DC Power Supply |
|---|---|---|
| Efficiency | High | Generally Lower |
| Size | Compact | Larger |
| Weight | Lightweight | Heavier |
| Heat Generation | Lower | Higher |
| Output Noise | Application dependent | Generally Very Low |
| Typical Use | Industrial & General | Sensitive Electronics |
How to Select an SMPS DC Power Supply?
Consider:
- Required output voltage
- Output current
- Total power requirement
- Input supply
- Efficiency requirement
- Ripple and noise requirements
- Protection features
- Cooling method
- Mounting arrangement
- Monitoring and communication requirements
Why Choose Powertron DCPS?
Powertron DCPS provides SMPS based DC power supply solutions designed for reliable and efficient DC power conversion. Solutions can be configured according to required voltage, current, power rating, protection, monitoring, cooling, mounting, and application requirements.
FAQ
It is a DC power supply that uses Switched-Mode Power Supply (SMPS) technology to efficiently convert electrical power into regulated DC output.
SMPS technology provides high efficiency, compact size, lower heat generation, and efficient power conversion.
They are commonly used in industrial automation, PLC systems, telecom, railway, instrumentation, control panels, substations, and manufacturing.
Yes. An appropriately designed SMPS provides regulated DC voltage and current within its specified operating range.
Yes. Input, output voltage, current, power rating, cooling, protection, monitoring, mounting, and other specifications can be customized according to application requirements.
Need a SMPS based DC Power Supply ?
Powertron DCPS offers SMPS based DC power supply solutions with high efficiency, low ripple and reliable continuous operation. Contact us for solutions.
