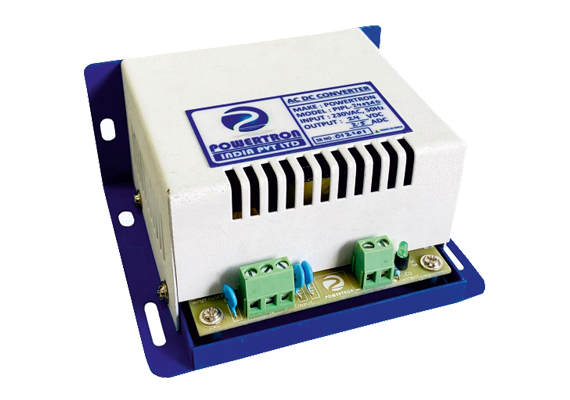

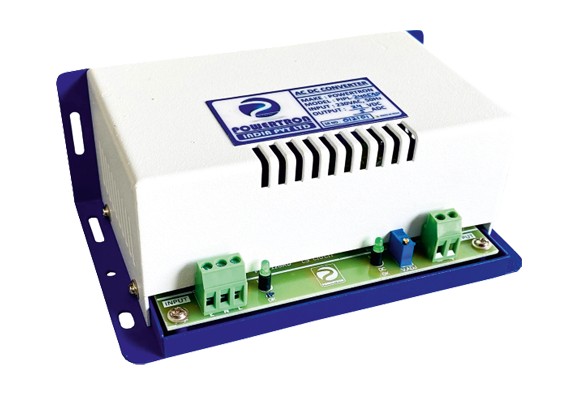

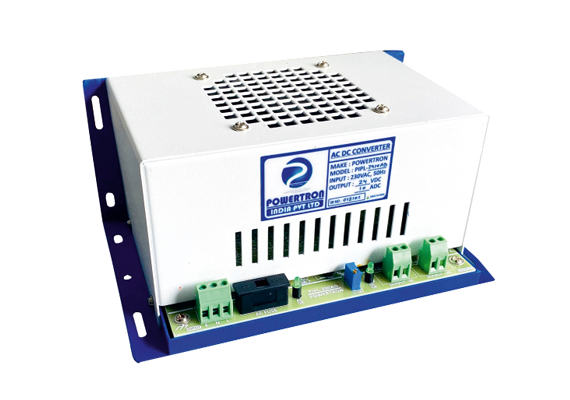

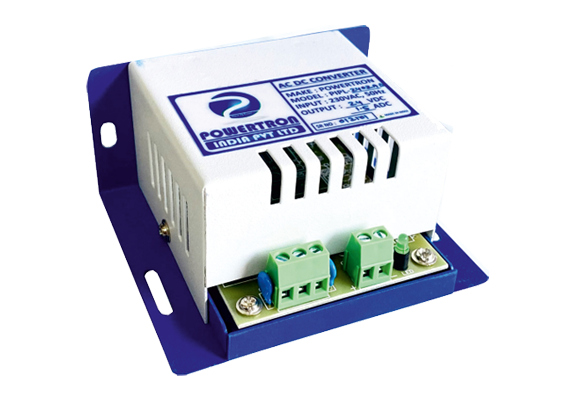

AC to DC Converter (SMPS) Manufacturers & Exporters
Available Variants
| DC VOLTAGE | RATED CURRENT | POWER | DC VOLTAGE | RATED CURRENT | POWER |
|---|---|---|---|---|---|
| 12VDC | 2.5A | 30W | 12VDC | 10A | 60W |
| 24VDC | 1.25A | 24VDC | 5A | ||
| 48VDC | 2.5A | ||||
| 48VDC | 0.625A | 110VDC | 1.09A | ||
| 12VDC | 10A | 120W | 12VDC | 20A | 240W |
| 24VDC | 5A | 24VDC | 10A | ||
| 48VDC | 2.5A | 48VDC | 5A | ||
| 110VDC | 1.09A | 110VDC | 2.18A | ||
| 220VDC | 1.09A | ||||
| 12VDC | 50A | 600W | 30VDC | 50A | 1500W |
| 24VDC | 25A | 60VDC | 25A | ||
| 48VDC | 12.5A | 100VDC | 15A | ||
| 110VDC | 5.4A | 150VDC | 10A | ||
| 220VDC | 2.72A | 300VDC | 5A |
AC to DC Converter for Industrial Applications
An industrial AC to DC Converter provides regulated DC power to PLCs, sensors, relays, controllers, instrumentation, communication equipment, and other industrial devices.
The SMPS-based design is suitable for applications requiring efficient power conversion, compact installation, stable DC output, and continuous operation.
SMPS-Based AC to DC Power Supply
An SMPS AC to DC power supply uses high-frequency switching technology to convert AC input into regulated DC output. Compared with conventional linear power supplies, SMPS technology generally provides higher efficiency and a more compact design.
Depending on the application, Powertron DCPS can provide configurations with appropriate voltage, current, power rating, protection, monitoring, and mounting arrangements.
How Does an AC to DC Converter Work?
The AC input is processed through rectification and power-switching stages. The switching circuit operates at high frequency, while control and feedback circuits regulate the DC output according to the required voltage and current.
Protection circuits help safeguard the power supply and connected equipment against specified abnormal operating conditions.
How to Select the Right AC to DC SMPS?
- AC input voltage range
- Required DC output voltage
- Maximum output current
- Total power requirement
- Output regulation
- Ripple and noise requirements
- Efficiency
- Protection requirements
- Cooling method
- Mounting and monitoring requirements
Why Choose Powertron DCPS?
Powertron DCPS provides AC to DC converter and SMPS power supply solutions designed for reliable and efficient DC power conversion. Systems can be configured according to required input voltage, output voltage, current, power rating, efficiency, protection, monitoring, cooling, and mounting requirements.
FAQ
An AC to DC Converter (SMPS) converts AC input power into regulated DC output using switched-mode power conversion technology.
Key advantages include high efficiency, compact construction, lower power losses, regulated output, and suitability for continuous industrial operation.
They are commonly used in industrial automation, PLC systems, telecom, railway, substations, instrumentation, control panels, battery systems, and manufacturing equipment.
Yes. An appropriately designed SMPS provides regulated DC voltage and current within its specified operating range.
Yes. Input voltage, output voltage, current, power rating, protection, cooling, monitoring, and mounting configurations can be customized according to application requirements.
Need a AC to DC SMPS Converters ?
Get reliable AC to DC SMPS converters with regulated output, low ripple and protection for industrial applications. Request a solution today.
